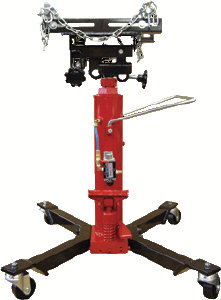

Astro Pneumatic 5512EX 1/2 Ton Air Over Hydraulic Telescopic Transmission Jack
Product Number: 24465
Manufacturer: Astro Pneumatic
$749.99
Select Quantity:
Product Details:
•Air-over hydraulics provide smooth lifting and lowering, no bouncing or jerking •Ideal for under-hoist use
•Double rod piston construction
•Includes safety chain
•Foot operated pump and lowering pedals allow use of both hands to position and align saddle with transmission
•Flash chromed ram prevents rust from entering the hydraulic system
•Safety overload system prevents jack use beyond its rated capacity
•Large handle to maneuver jack
•Wide base adds stability
•4 swivel ball bearing casters
Product Specifications:
•Weight Capacity: 1,000lbs •Min. Saddle Height: 34-2/5" (875mm)
•Max. Saddle Height: 70-3/4" (1,800mm)
•Hydraulic Lift: 36-2/5"(925mm)
•Overall Length: 37" (940mm)
•Overall Width: 30-7/10" (780mm)
•Saddle Size: 16-1/2" x 13-3/4" (420mm x 350mm)
•Saddle Tilt Forward: 24°
•Saddle Tilt Backward: 19°
•Saddle Left and Right: 20° / 10°
•Air Pressure: 0.7-1.0Mpa
